A Complete Structural Detailing Service To The Steel Work Industry

MSS provides a specialist detailing service to the structural steelwork industry using the latest Tekla software to produce general arrangements, fabrication and fitting drawings to the steelwork fabricator.

Read more
Structural Detailing Service Banner
MSS Icon 1

Specialist Detailing Service

MSS provides a specialist detailing service to the structural steelwork industry using the latest Tekla software to produce general arrangements, fabrication and fitting drawings for the steelwork fabricator.

MSS Icon 2

Projects Any Shape or Size

We undertake projects of any shape or size, ranging from 5 to 1000 tonnes. Our service can include liason with the client, site surveys, connection designs and full detailing package.

MSS Icon 1

Getting the Job Done

We have a vast knowledge of structural steelwork and we pride ourselves in being able to tackle the most complicated structures and "get it right".

MSS Banner

OUR SERVICES

About MSS

MSS are able to offer a full draughting service for all types of structures. General arrangement drawings are produced upon receipt of order. TQ's are then raised. These arrangements are then used as a point of reference to identify and resolve as much outstanding information as possible prior to commencing detailing.

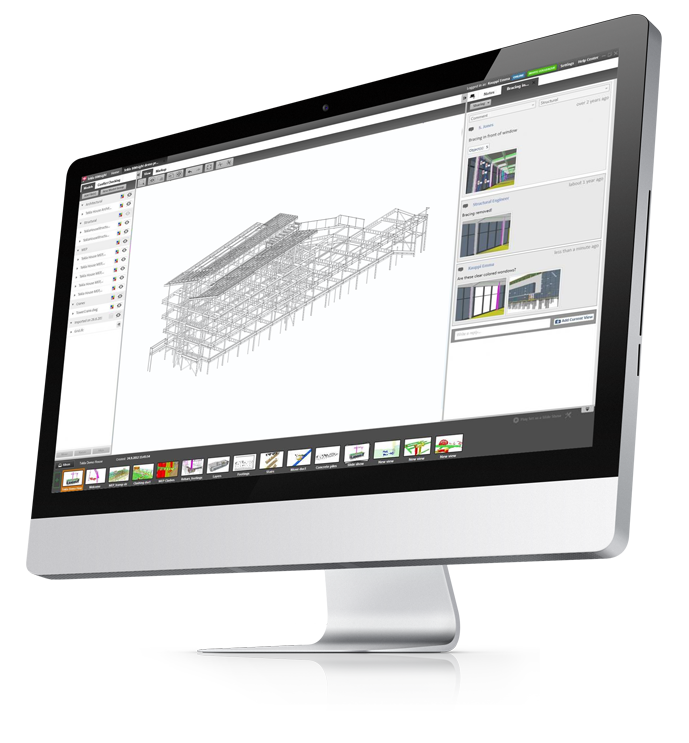

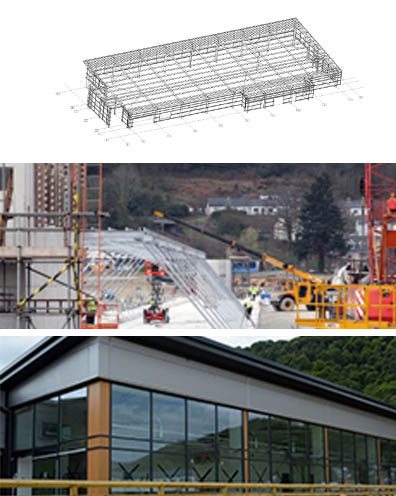

A 3D model is prepared on the latest version of Tekla (currently version 21). The fabrication issue would comprise of fabrication drawings, fittings sketches, assembly drawings, material lists, bolt lists, load lists, DSTV files, cold rolled CAM data (sent directly to the cold rolled supplier if preferred).


On completion of detailing, we will issue a series of 3D Marking plans and a BIM sight model, which you can send on to your clients, enabling them to take a virtual tour through the steel skeleton of their building. (Requires downloading a Freeware package).


Even though detailing may be complete, we do not class a project as finished until the steel is fully erected, and always give full and immediate attention to any issues that arise during fabrication or installation - a fact that has gained us praise from our existing clients.

Want to know more.. Contact Us

Portfolio

TESTIMONIALS

Testimonial

We have been using Midland Structural Services (Northern) limited for the past 18 months, as a company we find their approach both professional and efficient. We have no hesitation in recommending their services.

- Dave Hackett

Testimonial

MSS (Northern) have completed their works within tight timescales and take on any variations very efficiently. We would have no hesitation in recommending MSS (Northern) and will be looking to use his services on future projects.

- Gary Clarke

Testimonial

We have now worked in conjunction with MSS (Northern) Limited for over 15 years and together have produced over 100 jobs from very straight forward steel structures to some really complex, challenging and uniquely bespoke structures.

- Anthony Nelson

Testimonial

All projects are produced to a high standard and within strict time parameters set by clients. We are happy to provide a reference for John and would recommend his services.

- David Hodgson

Testimonial

All projects by MSS (Northern) Limited have been executed within the stringent time parameters set by our demanding clients with no drawing errors and in turn reducing the timeline on site.

- David E Graves

We have been working with MSS for over 20 years, and during that time, we have completed many intricate, and complex projects together. We have always found them to be professional, accurate, and work to program..

- Jeremy Duval - Duval Betgate Ltd
